•Compact 120x 100mm x40mm
Two versions are available.. MHA-100KS with a key-switch. MHA-100MK with a MagKey
•Two PIR / sensor input channels; Chan2 can be set for an entry delay.
•Panic button channel
•Relay output to trigger other systems
•Relay output for a siren and strobe
•12v operation
•LED diagnostics
•Very low power consumption
•Easy to install
•No remotes, armed by a key switch
•Adjustable siren time
•Locally manufactured
•12 month warranty
No monthly Subscription

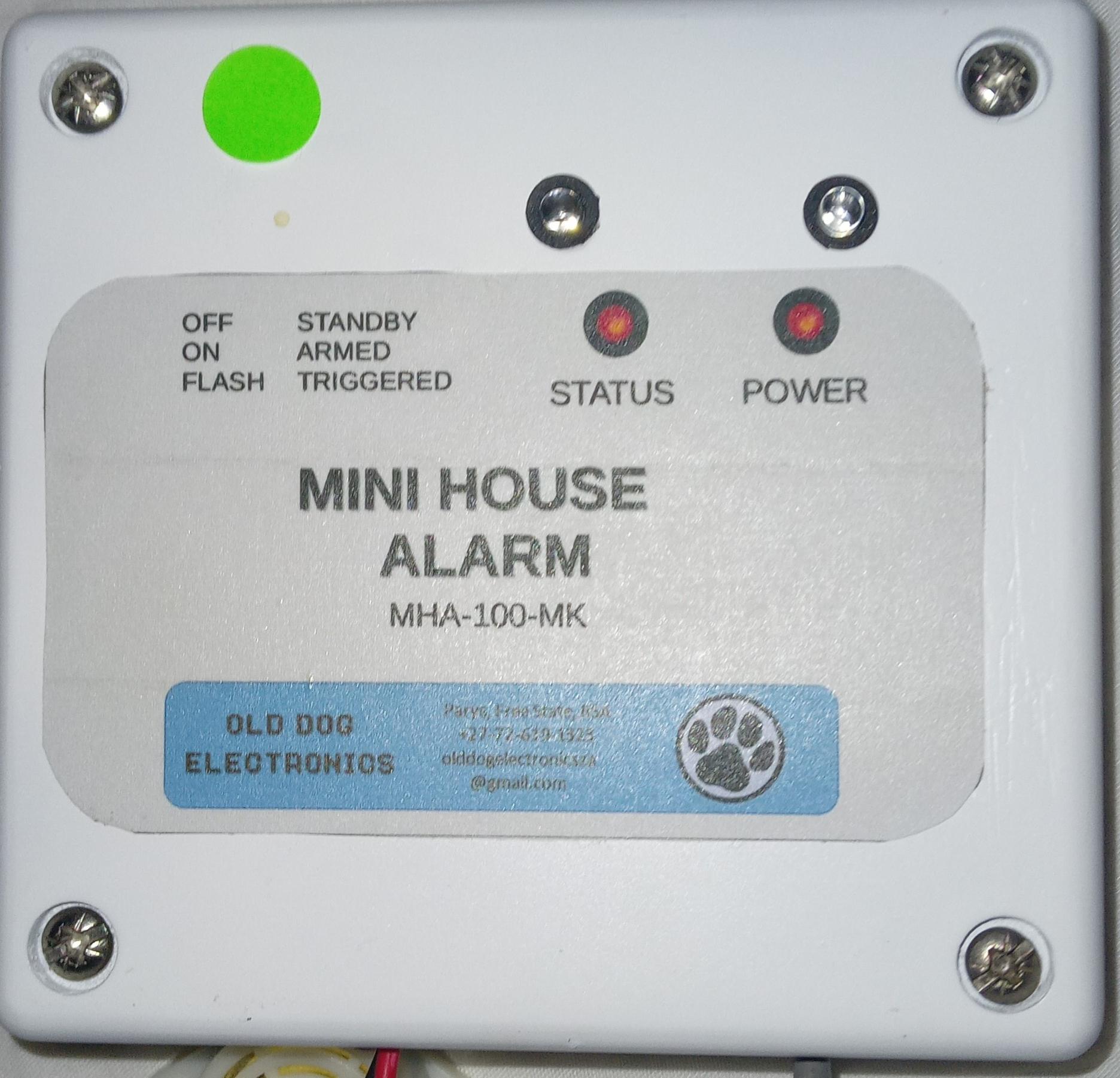

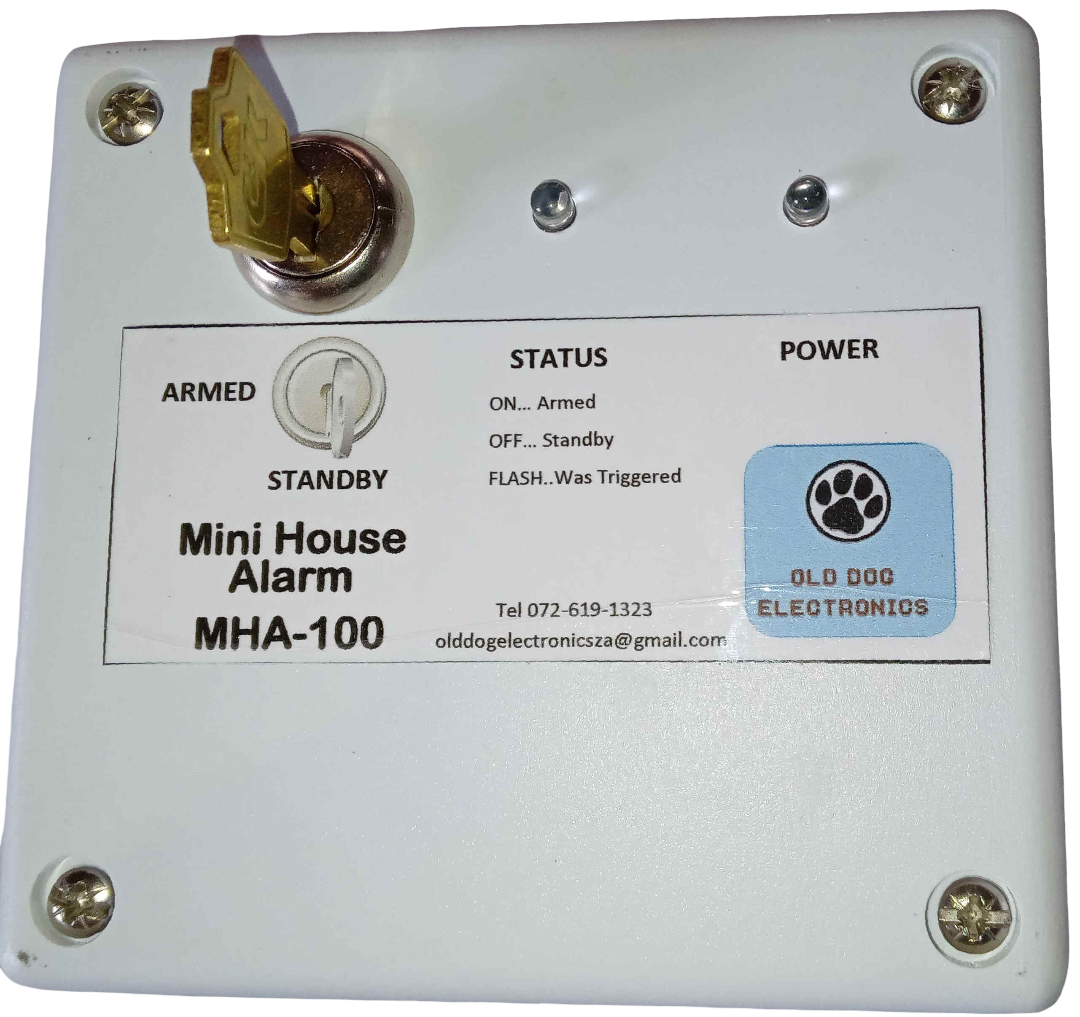

MHA-100-KS and MK
Mini House Alarm
Ideal For Small Houses, Granny Flats, Out Buildings, Ideal For Renters
The Mini House Alarm is designed to provide low cost protection to smaller houses, apartments, garden flats, and out buildings.

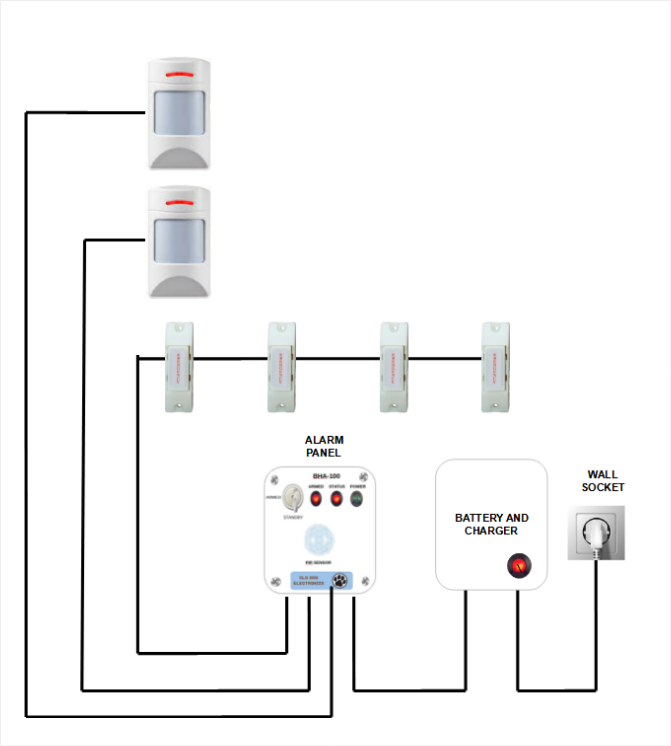

The MHA-100 has three channels, 2x alarm channels from wired PIR sensors, Ch1 is an instant alarm, Ch2 can be set for an instant alarm or an entry delay with a jumper, 1 x panic alarm channel. The alarm operates off a 12v dc supply, battery charged from mains, or solar power. The MHA_100-KS is armed armed by a key switch, the MK version uses our MagKey. The alarm status is displayed with an LED. The siren time is adjustable from a few seconds to 3min for an intrusion alarm to 4min for a panic alarm. The alarm panel is very compact, being approximately 120mm x 120mm x 40mm.
Standby Mode
In the standby mode, the alarm does not trigger if the sensors detect movement. This mode is set whilst the area is occupied. If panic buttons are connected, they will be active in the standby mode.
The status LED shows when any of the sensor channels are active. This is useful when testing the alarm.
Armed Mode
The armed mode is set when leaving the house. When switched to the ARMED mode, the alarm has a 20sec exit delay before it arms. During this time, motion sensors will ignore movement. The siren “chirps” twice a few seconds before the system is armed.
Once armed, the alarm will trigger immediately if movement is detected Chan1 or after the entry delay on Chan2, or from a panic button.
